Corroshield Fasteners

To complement the roof sheeting products, a wide range of roofing accessories consisting of rainwater goods, louvers and ventilators is offered. Roofing accessories are manufactured from: Colorbond and Colorplus sheets in standard 0.47mm and 0.53mm in AZ150 and AZ200 as well as in Galvanised sheets in standard thickness of 0,4; 0,5; 0,58; 0,8 and 1,2mm galvanising, from Z160 to Z275. Pre-painted colour finish in 0,58 and 0,8 thickness.

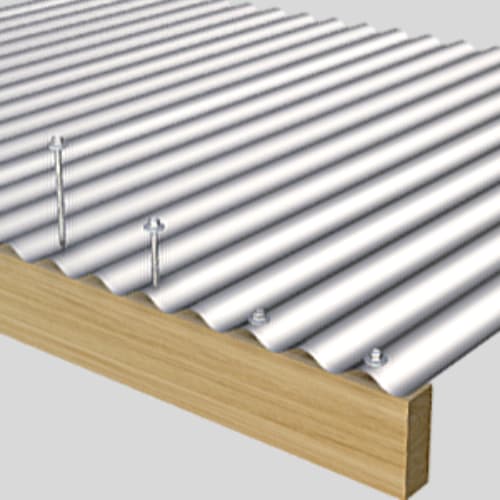

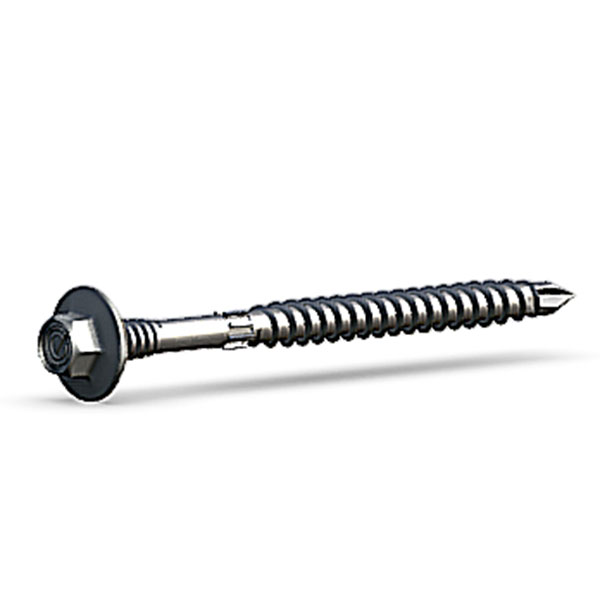

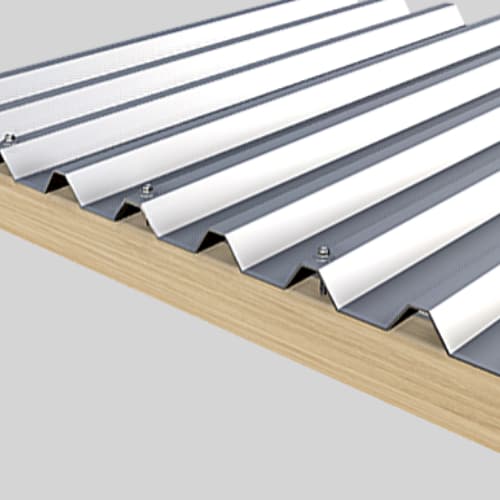

TIMTAPP® Fixing into Timber - Pierced Fix

Fastener Description

TT 12 – 9 x 50mm Class 3
TT 12 – 9 x 65mm Class 3 & 4
TT 12 – 9 x 75mm Class 3 & 4
TT 12 – 9 x 90mm Class 4

Fastener Features

HWF, DS, S17, 12DT/14, EPDM
HWF, DS, S17, 12DT/14, EPDM
HWF, DS, S17, 12DT/14, EPDM
HWF, DS, S17, 12DT/14, EPDM

Features Legend

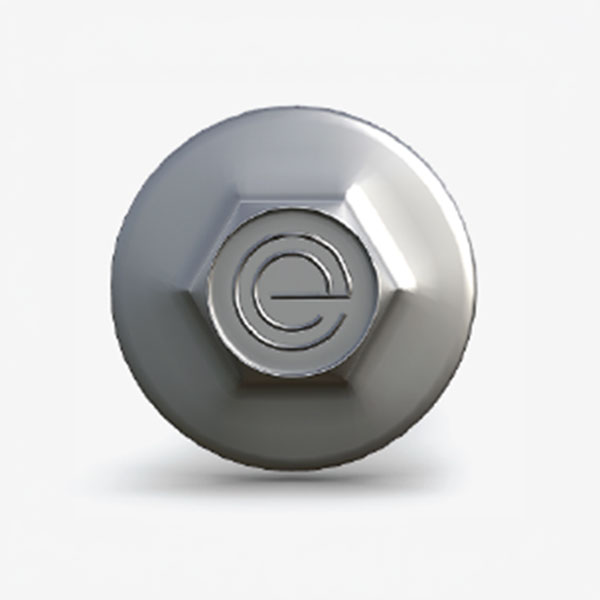

HWF – Hex Washer Flange
DS – Dual Thread with Scratch Shield
S17 – S17™ Drill Point
12DT/14 – 12ø and 14ø Dual Thread
EPDM – Rubber Washer

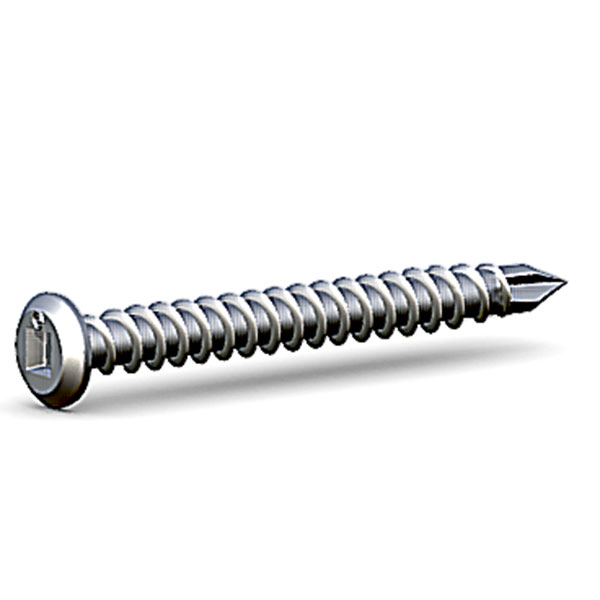

TIMTAPP® Fixing into Timber — Concealed Fix

Fastener Description

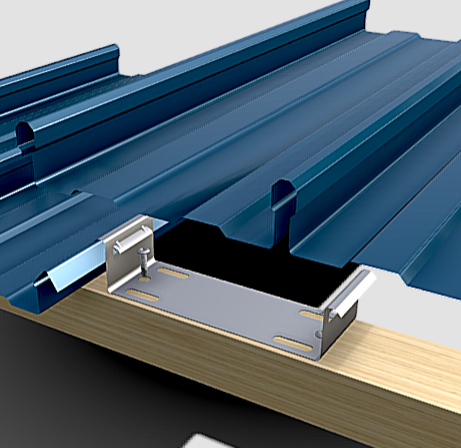

TT 10 – 12 x 45mm Class 3
TT 12 – 9 x 65mm Class 3

Fastener Features

WFR, SQD2, FT, S17
WFR SQD2, FT, S17

Features Legend

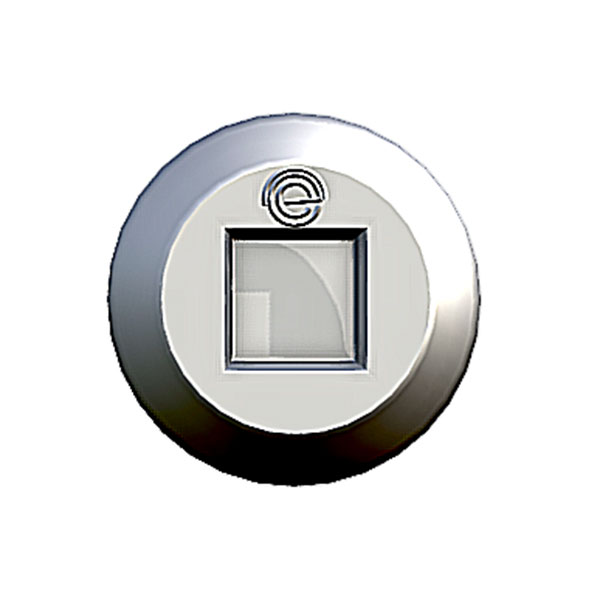

WFR – Wafer Head

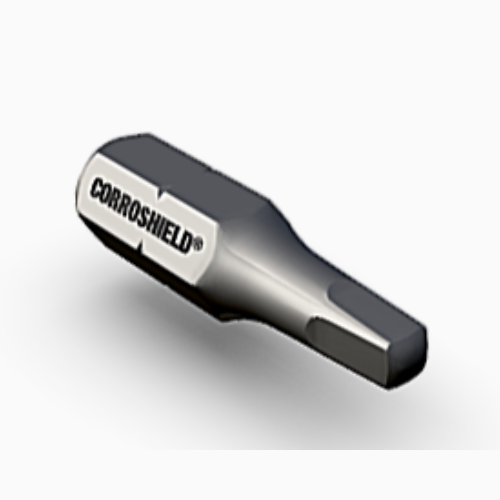

SQD2 – Square Drive No.2 Bit
FT – Full Thread
S17 – S17TM Drill Point

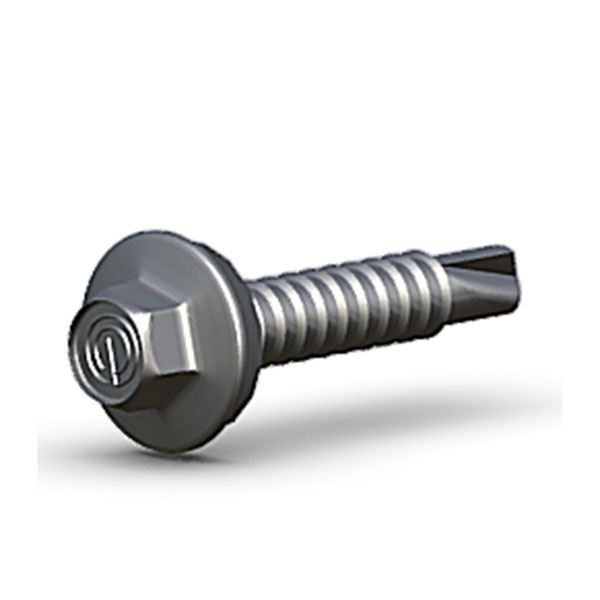

METAPP® Pierced Fix — Fixing into Steel

Fastener Description

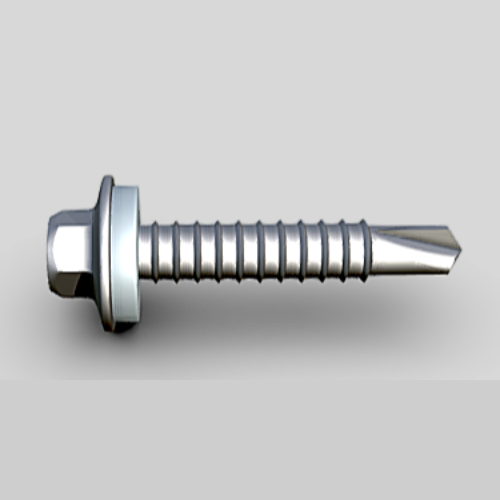

MT 12 – 14 x 25mm Class 3 & 4
MT 12 – 14 x 50mm Class 3 & 4

Fastener Features

HWF, FT, LV, 2.5mm EPDM

Features Legend

HWF – Hex Washer Flange
FT – Full Thread
LV – Levin Drill Point
EPDM – Rubber Washer

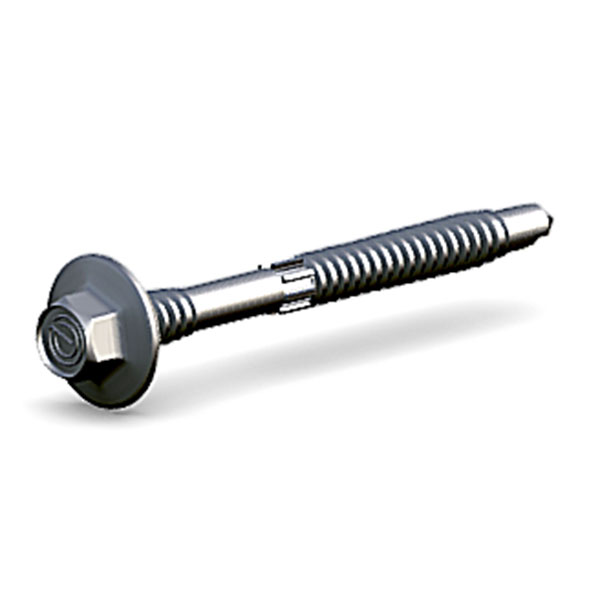

METAPP® Pierced Fix — Fixing into Steel (Long)

Fastener Description

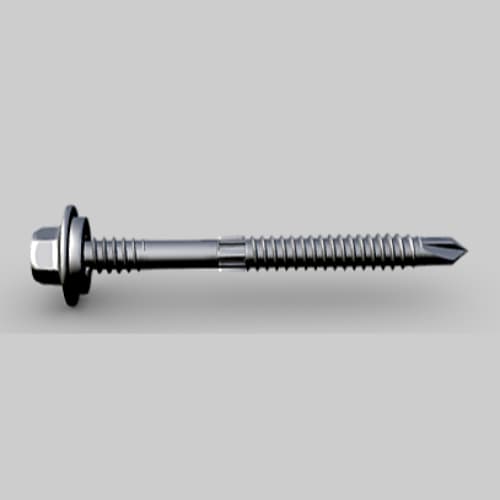

MT 12 – 14 x 65mm Class 3 & 4
MT 12 – 14 x 90mm Class 3
MT 12 – 14 x 125mm Class 4

Fastener Features

HWF, DS, LV, 12DT/14, 2.5mm EPDM

Features Legend

HWF – Hex Washer Flange
DS – Dual Thread with Scratch Shield
LV – Levin Drill Point
12DT/14 – 12ø and 14ø Dual Thread
EPDM – Rubber Washer

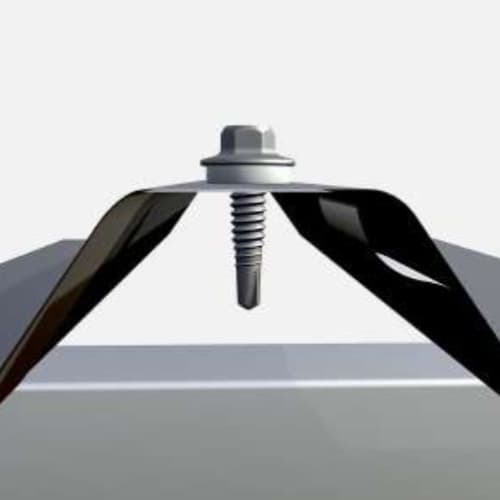

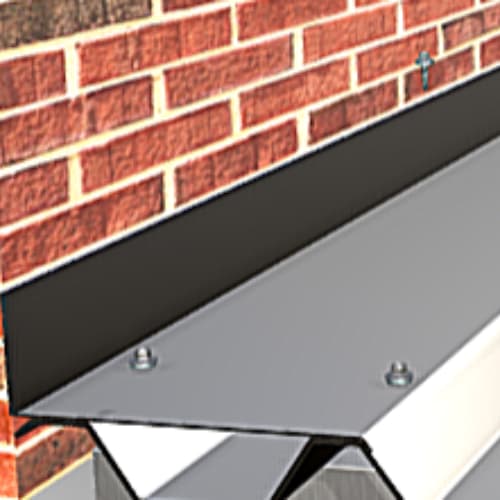

METAPP® Stitching Screw — Fixing into Steel

Fastener Description

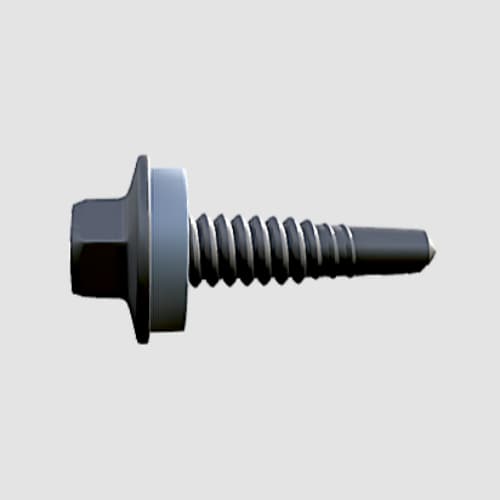

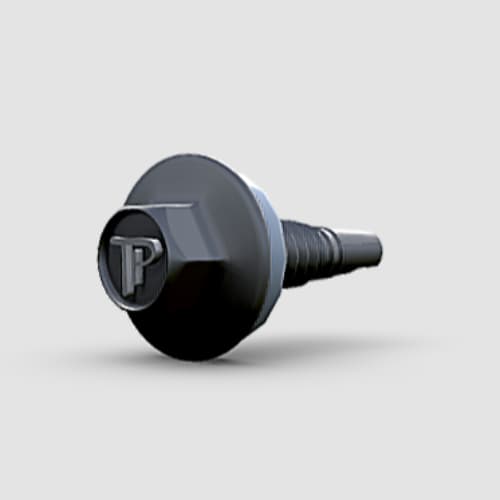

MT 14 – 20 x 22mm Class 3 & 4

Fastener Features

HWF, FT, LVR, 2.5mm EPDM

Features Legend

HWF – Hex Washer Flange
FT – Full Thread
LVR – Reduced Levin Drill Point
EPDM – Rubber Washer

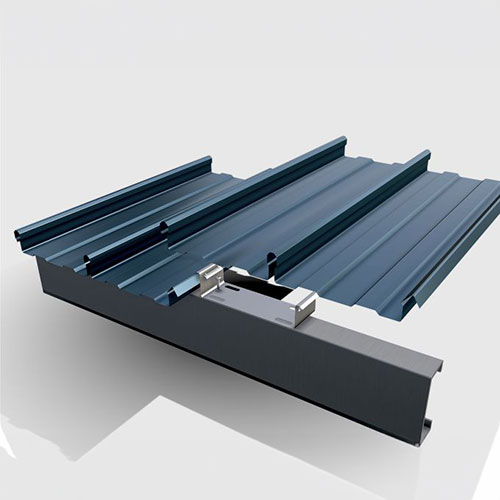

METAPP® Concealed Fix — Fixing into Steel

Fastener Description

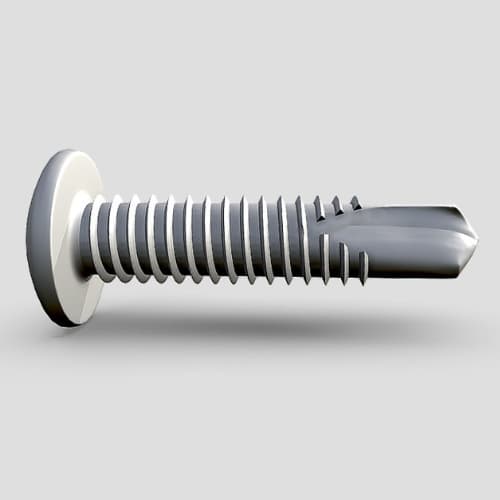

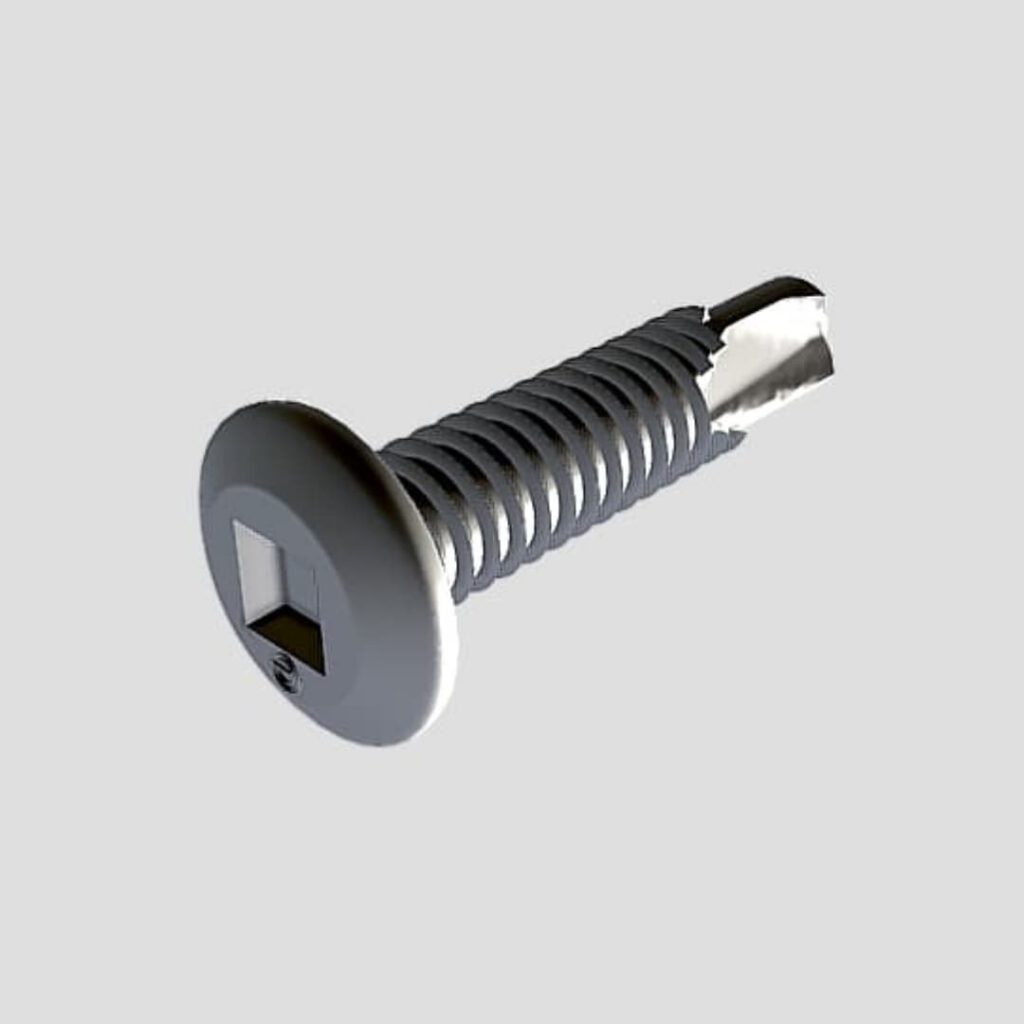

MT 10-24 x 22mm Class 3
MT 12 -14 x 65mm Class 3
MT 12 – 14 x 85mm Class 3
MT 12 – 14 x 115mm Class 3

Fastener Features

WFR SQD2, FT, LV

Features Legend

WFR – Wafer Head
SQD2 – Square Drive No.2 Bit
FT – Full Thread
LV – Levin Drill Point

Fastener Feature Legend

Thread Types

Abbreviation	Description
MT	METAPP Thread
TT	TIMTAPP Thread
FT	Full Thread
DS	Double Thread with ScratchShield® Coating

Head Types

Abbreviation	Description
HWF	Hex Washer Flange
WFR	Wafer Head

Drive Types

Abbreviation	Description
SQD	Square Drive

Drill Point Types

Abbreviation	Description
LV	LEVIN® Drill Point
LVR	LEVIN® Reduced Drill Point
ST7	TIMTAPP Drill Point

Washer Types

Abbreviation	Description
EPDM	EPDM Rubber Sealing Washer
