Is your roof too large to be done in pre-fabricated timber or are you shipping roofs into Africa and paying dearly for transport? Maybe you wish to supply low-cost roofs or simply prefer non-combustible roof structures? Whatever your need, Ultra-Span® offers the solution!

MiTek Industries South Africa (Pty) Ltd, the world’s leading provider of connection solutions to the wood component industry, is proud to present the Ultra-Span® Light Gauge Steel Truss System. Your local MiTek licensed fabricator can provide you with design and pricing information on Ultra-Span® utilising state of the art MiTek 20/20® software, alternatively your MiTek regional offices will gladly assist.

Ultra-Span® trusses can be supplied in “kit-form” (low-cost housing or other remote projects) whereby trusses are assembled on site, contributing to local skills transfer and employment, or in pre-fabricated form ready for installation on the roof.

BENEFITS:

• Elegant simple system with all members straight and true for a level roof.
• Span capability from small low-cost to large 40m clear span commercial structures.
• Non-combustible with inherent resistance to borer and fungus attack.
• Galvanised coating ensures long product life.
• Low mass per m² (between 2–10kg) reduces load on supporting structures.
• Lower weight reduces transportation costs and improves handling and erection.
• Easy truss manufacture with screws and electric fixing tool on site or in factory conditions.
• Can be supplied in kit-form for remote projects, supporting local skills transfer and employment.

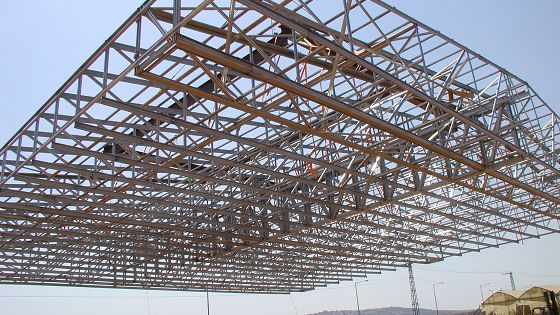

• Large roof sections can be pre-assembled on the ground and hoisted into position.
• Vermin proof.

APPLICATIONS:

• Residential housing and low-cost housing projects.
• Commercial and industrial buildings up to 40m clear span.
• Carports and domestic structures.
• Agricultural buildings and warehouses.
• Schools, hostels and assembly halls.
• Export and remote site projects across Africa.

TECHNICAL SPECIFICATIONS:

Chords:

• USC184 x 1.9 — 184mm Chord in 1.9mm steel (5.29kg/m). Suitable for very large spans and girders.
• USC140 x 1.2 or 1.6 — 140mm Chord in 1.2mm or 1.6mm steel (2.51kg/m and 3.34kg/m respectively). Suitable for large spans and girders.
• USC89 x 1.0 or 1.2 — 89mm Chord in 1.0mm or 1.2mm steel (1.44kg/m and 1.73kg/m respectively).
• USC64 x 0.8 — 64mm Chord in 0.8mm steel (0.93kg/m).

Webs:

• USW76 x 0.8 or 1.2 — 76mm Web in 0.8mm and 1.2mm steel (0.73kg/m and 1.38kg/m respectively).
• USW76 x 1.6 — 76mm Web in 1.6mm steel, unsymmetrical profile for stacking (1.8kg/m).
• USW38 x 0.8 — 38mm Web in 0.8mm steel (0.55kg/m).
